Available in 1" size
BSP(G) threads as standard

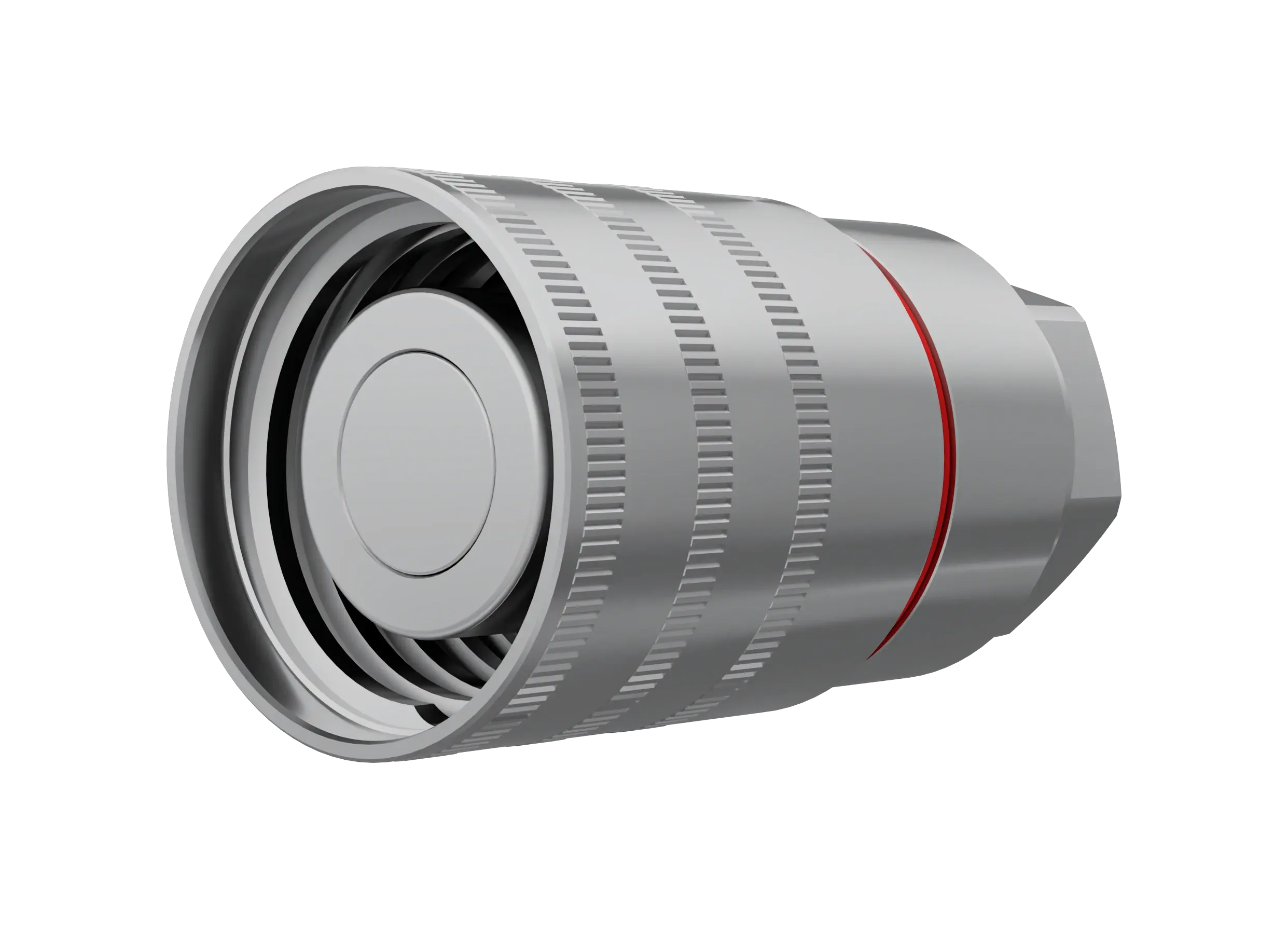

Large Quick Connector coupling developed within the OCP specifications.
The LQC Series represents a high-performance family of quick disconnected couplings designed for demanding liquid cooling and fluid-handling applications. Built to support larger flow rates, robust mechanical engagement and dependable sealing, LQC connectors excel where heat extraction capacity and operational continuity are essential.
Double redundant O-ring seal
For extra leak prevention
Color coding
For hot and cold lines
Low-resistance fluid flow
Suited to high load environments
Products
MoreSizeWorking PressureRated FlowSpillageMax torque to Connect
Technical notes
Burst pressure disconnected:48 bar (696 psi)
Burst pressure connected:48 bar (696 psi)
Valve type:Flat Face
Connection:Screw to Connect
Disconnection:Unscrew to Disconnect
Series interchange:OCP LQC Specification v1.0
Material:Stainless Steel
Seals:EPDM - P
Working temperatures:-20°C to +60°C (-4/140 F)
Connection under pressure:Allowed up to 5 bar

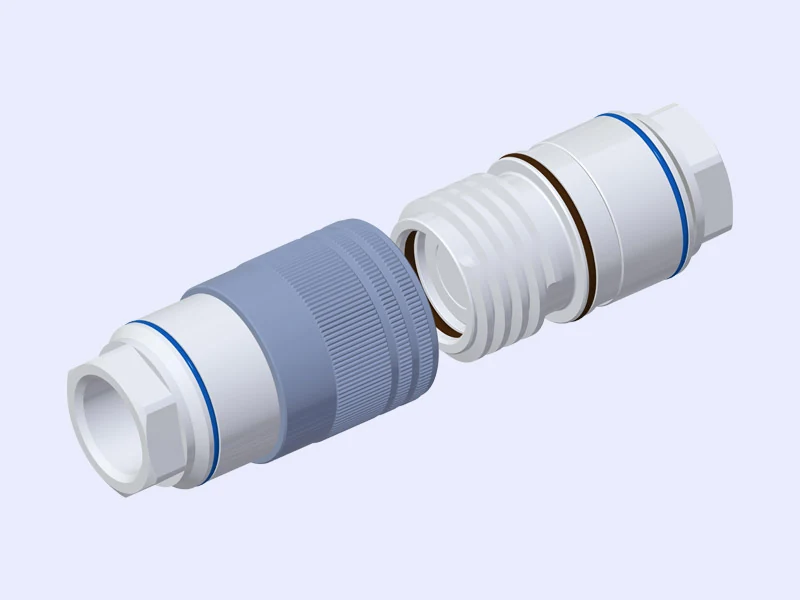

LQC
|
Large connectors designed for system continuity and throughput
LQC models provide a rugged yet serviceable interconnect with a flat sealing interface that promotes clean operation during maintenance and modular reconfiguration. Their geometry supports stable, low-resistance fluid flow suited to high load environments, reducing energy loss and helping maintain consistent temperature gradients throughout the system.
